How-to-guide: Temporal grouping tool

How-to-guide: Temporal grouping tool

Tool view



Purpose of tool

In localisations-based super-resolution microscopy, each fluorescent molecule can emit ("blink") multiple times, depending on its properties and the super-resolution technique used. Those blinking events are localized accurately using advanced algorithms over the frames of one single-molecule acquisition. The photo-switching kinetic, also called blinking kinetic, defined by the fluorophores off-state/on-state duration ratio impacts the quality of the final reconstruction. Thus, each blinking event can be localized across multiple frames leading to the multiplication of localisations and overcounting. Temporal grouping is a powerful tool which aims to reduce noise and clean your data by combining duplicated localisations from a single blinking event.

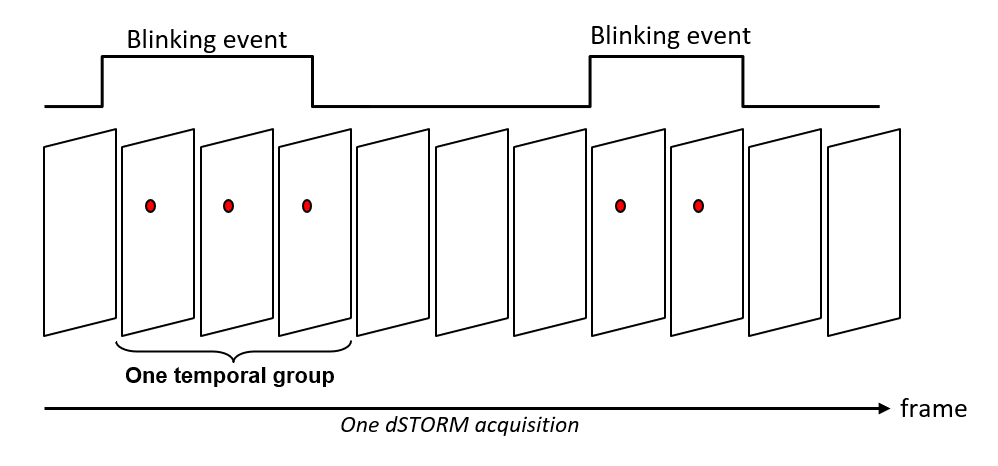

       Each fluorophore blinking event can be localized across multiple frames leading to multiplication of localisations and overcounting.
Temporal grouping tool will aggregate duplicated localisations from a single blinking event.

Contents

  • Running the tool
  • Input parameters
  • Duration filtering: Refinement of temporal groups

Running the tool

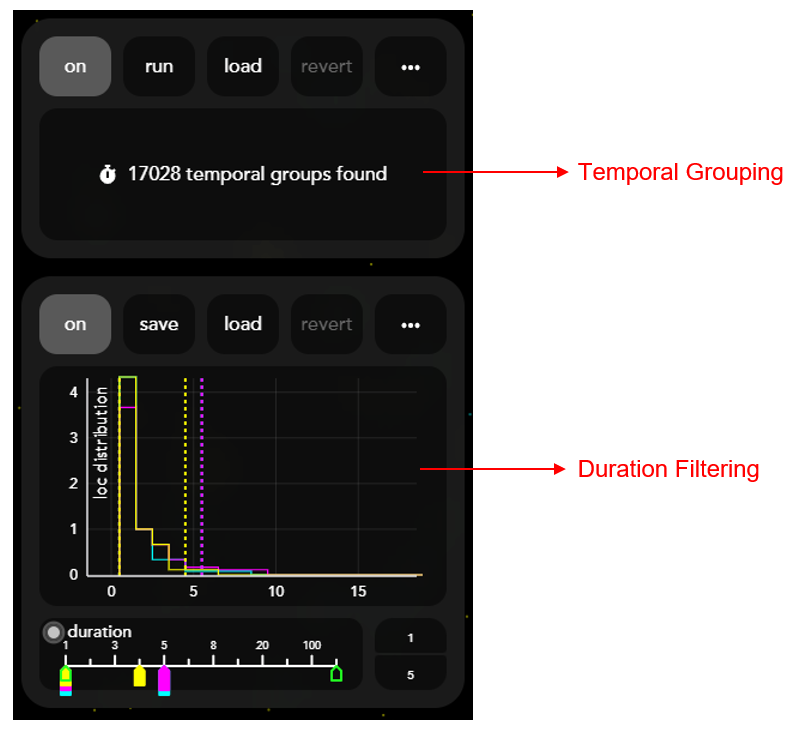

The temporal grouping tool is now included in the analysis workflows of CODI. Access Temporal grouping tool from the analysis workflow menu ("clock" icon). The tool is divided into two widgets : Temporal grouping (top) and duration filtering (bottom).



Temporal grouping can be run with default parameters by clicking “run” in the widget. This will apply any pre-processing steps loaded in the workflow to the localisations before temporarily grouping localisations by channel.

Input parameters

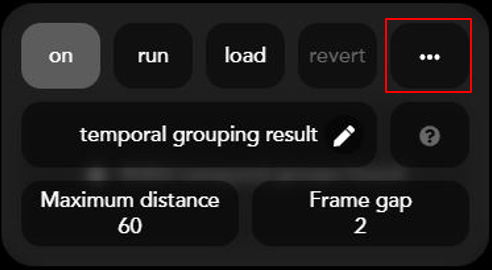

For more fine-grained control, a menu can be accessed by clicking the three dot icon to reveal further options. In this menu you will be able to change the maximum "frame gap" and “maximum distance” (nm) parameters.



Localisations are regrouped into a temporal group only if it satisfies a maximum frame gap and maximum distance (search radius) conditions (see figure below). Note that these parameters are not informed by blinking kinetics. The "maximum frame gap" criterion allows one blinking event that is captured un-continuously over the frame (e.g. due to poor signal noise ratio) to be combined as one temporal group. While the "maximum distance" criterion is driven by localisation precision.


All events belonging to one group will be replaced by a single point, here named as one temporal group, its coordinates are calculated based on all the grouped localisations (barycenter).



Localisations are regrouped into a temporal group if it satisfies a maximum “frame gap” and “distance” conditions.

Output results


By channel, each localisation event will regroup into temporal groups depending on the input parameters and user defined criteria. Only temporal groups will appear in the dataset view and in the visualization panel. It results in a cleaner dataset and allows more accurate quantitative analysis of biological structures.



One sub-diffracted EV’s tetraspanins structure imaged using 3-color dSTORM (a) before and (b) after temporal grouping correction. (a) Each point represents one localisations event. (b) each point represents one temporal group.




Once the temporal grouping tool is run, each localisations will be gathered into temporal groups by channel.
Only temporal groups will appear in the dataset view and in the visualization panel.

Duration filtering: Refinement of temporal groups


Using duration filtering you will be able to filter out short or long temporal groups for each channel, and thus to discard fiducial markers or artifacts from your dataset as an example.

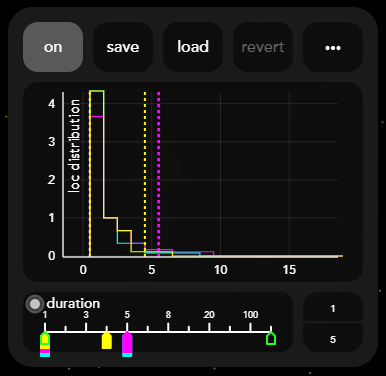

The duration filtering tool allows to filter the temporal groups by channel based on their duration.
The temporal groups distribution can be visualised by channel on this panel.
